Sold

2001 Osmonics AC-48X96

Hartford, CT

Description

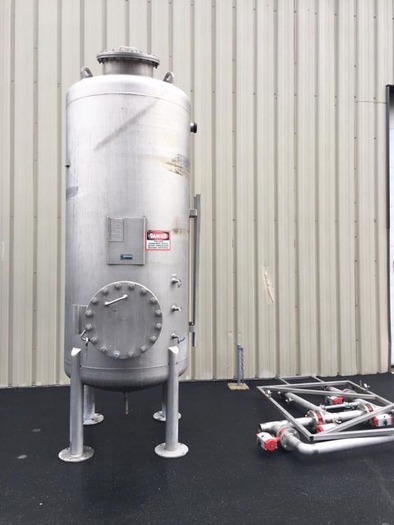

Used Osmonics Carbon Filter with manifold and valves Osmonics Carbon Filter Stainless Steel Carbon Tower was last used as active carbon water filtration at a Coca-Cola facility. It includes all of the stainless manifold and valves shown in the photos. The Carbon Filter was manufactured by Osmonics in Minnetonka MN and measures 48” Diameter x 96” Tall. The Model Number is AC-48X96 with Serial Number 01-4091528B and National Board Number 30542. System Includes: – Vertical Tank with (4) Legs – Max Working Pressure 100 PSI @ 200 Deg F – Min Design Temp. -20 Deg F @ 100 PSI – 25” Diameter Top and Side Manhole Openings – 3” Diameter Inlet/Outlet Connections – Outlet to Floor Dimension 16” – Includes SST Manifold and Valves – (4) Top Lifting Eye Brackets – Overall Dimensions 12’ H x 4’ Dia

Specifications

ManufacturerOsmonics
ModelAC-48X96
Year2001
ConditionUsed
Serial Number014091528B
Stock Number180410
